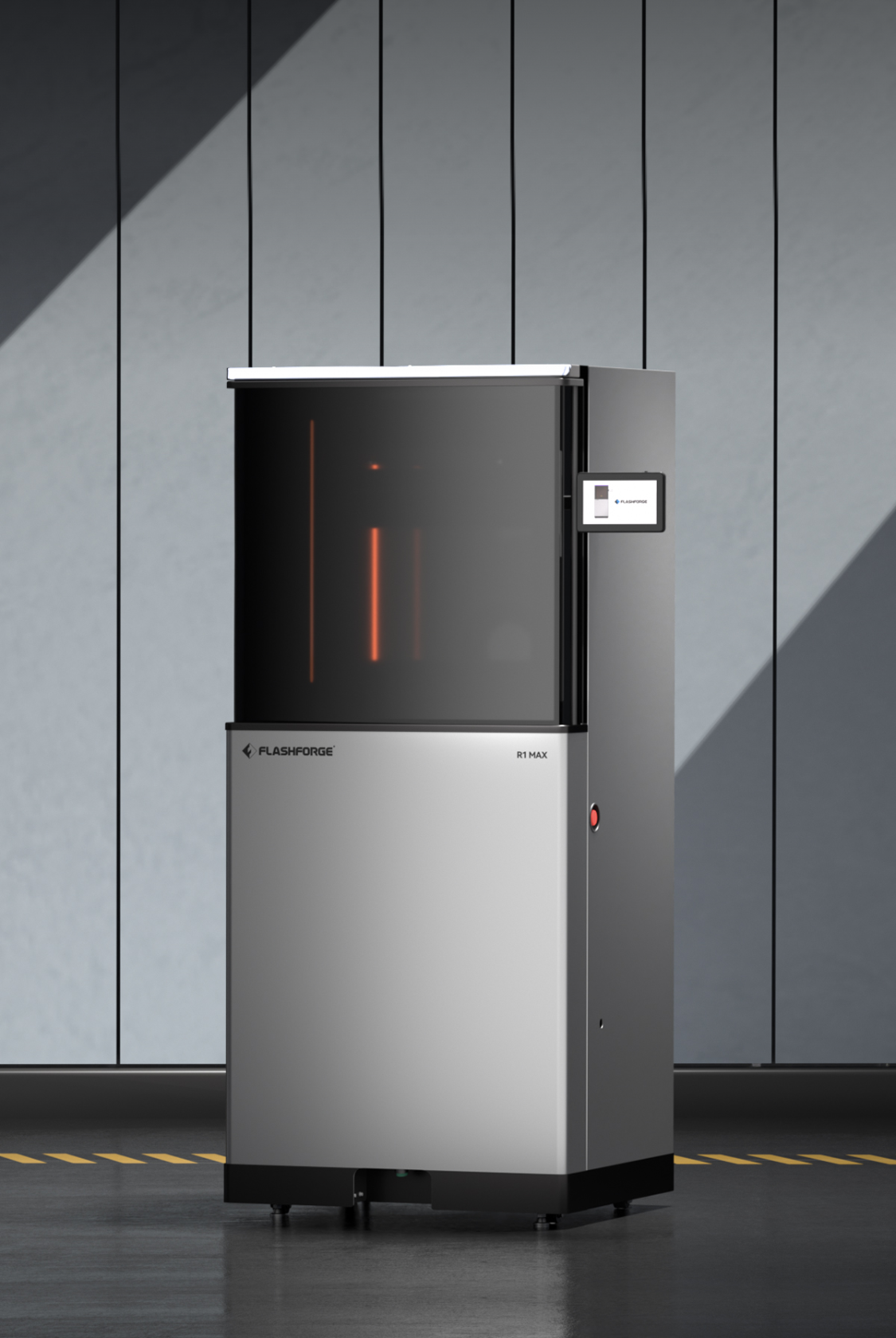

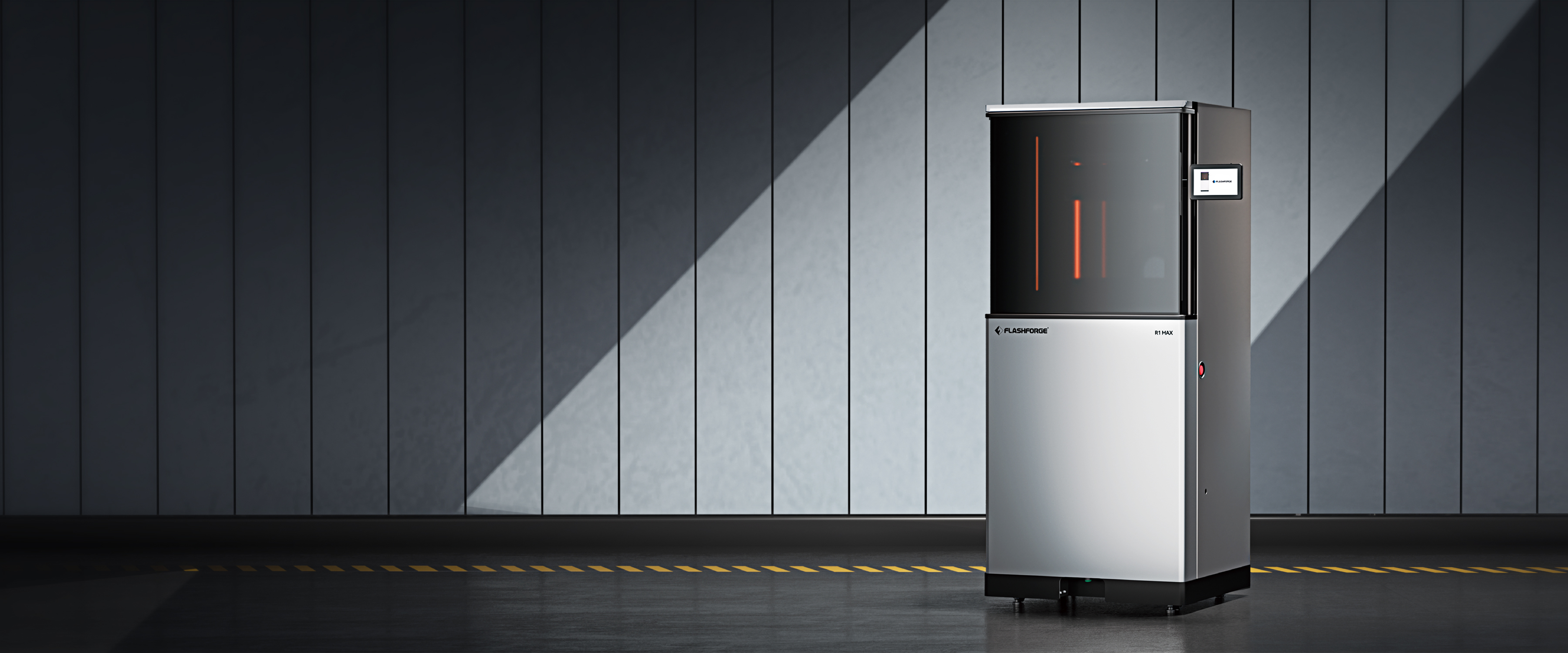

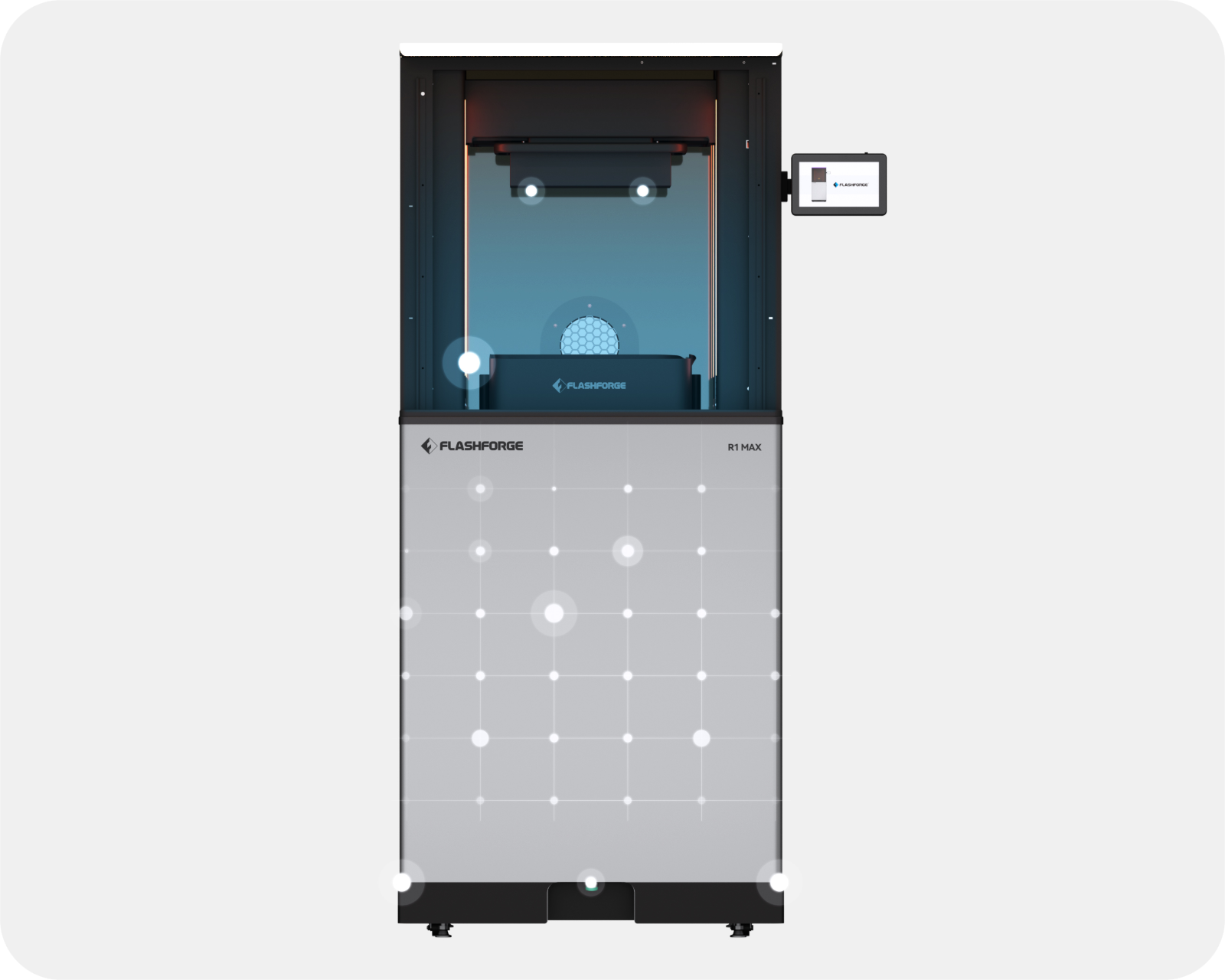

R Series 3D PrintersR1/R1 MAX
-

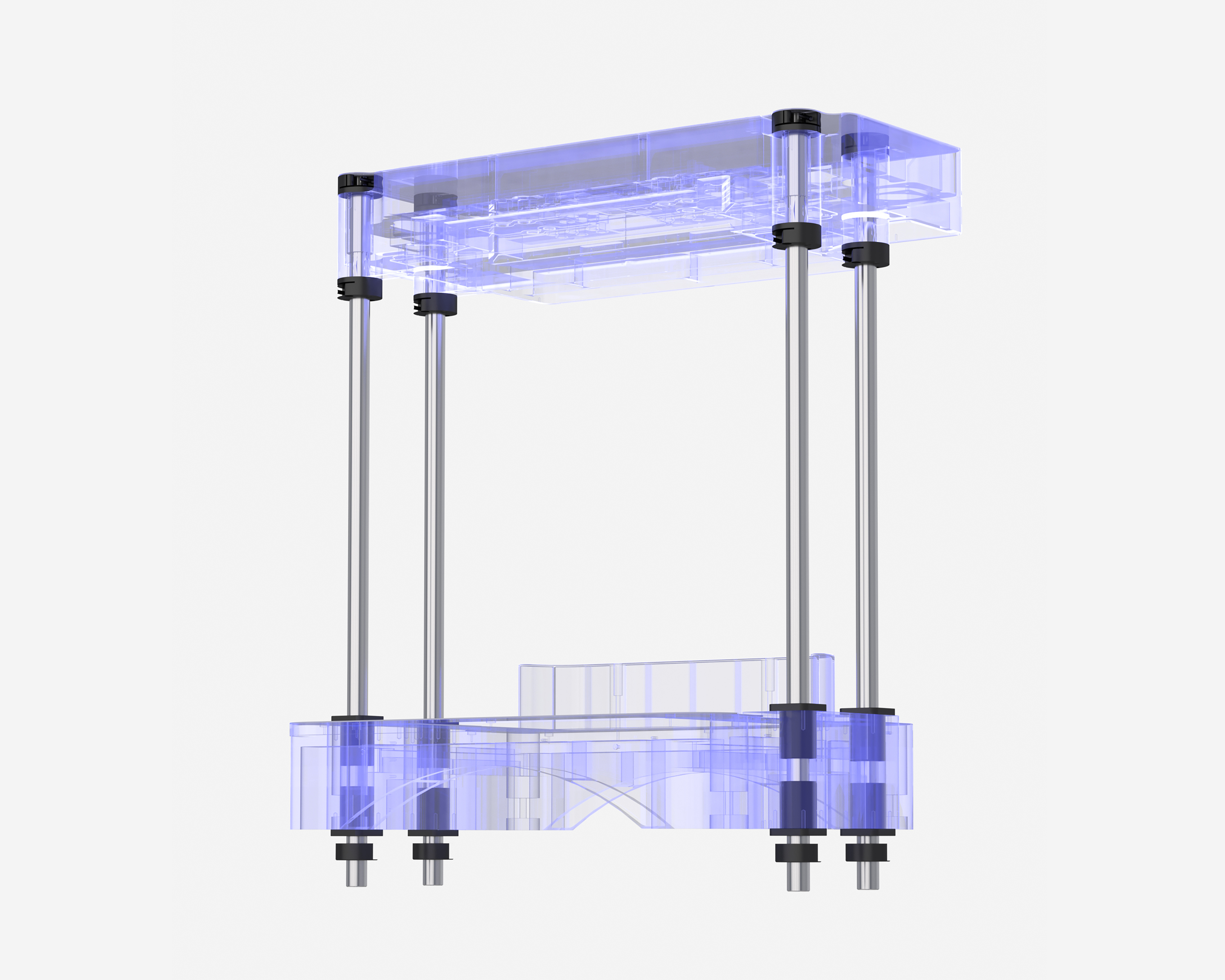

Four-Axis Gantry Structure，Stable Operation in Complex Environments
-

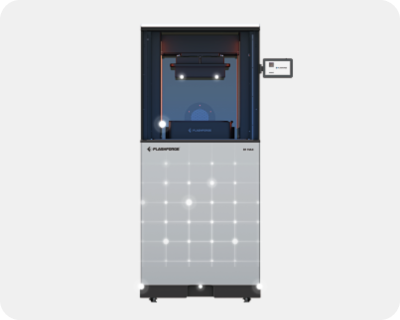

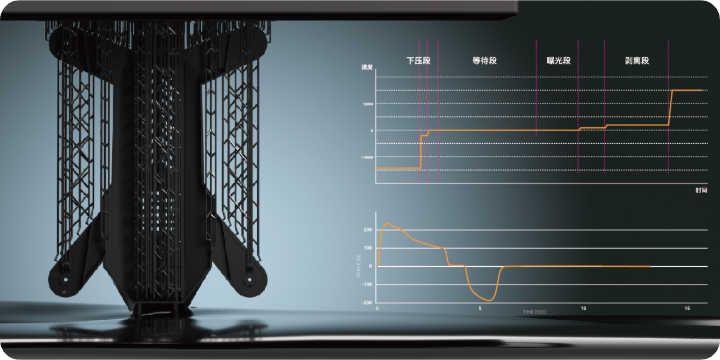

20+ Ultra-Sensitive Sensors，Millisecond-Level Data Acquisition
-

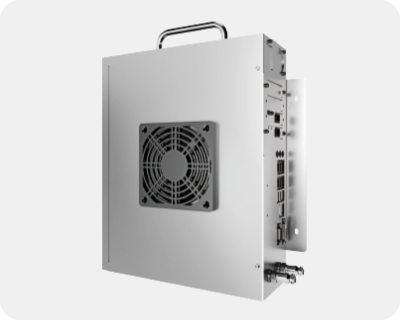

High-Performance 4-Core CPU，Industrial PC Dynamic Processing

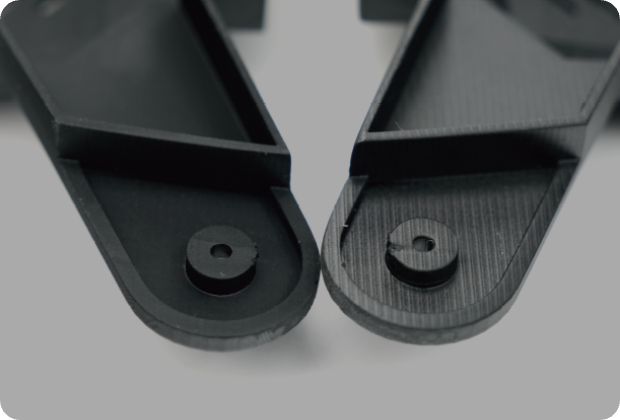

Silky-smooth touch with the surface roughness as low as Ra 5μm, offering exceptional fine texture and high-quality visual appeal

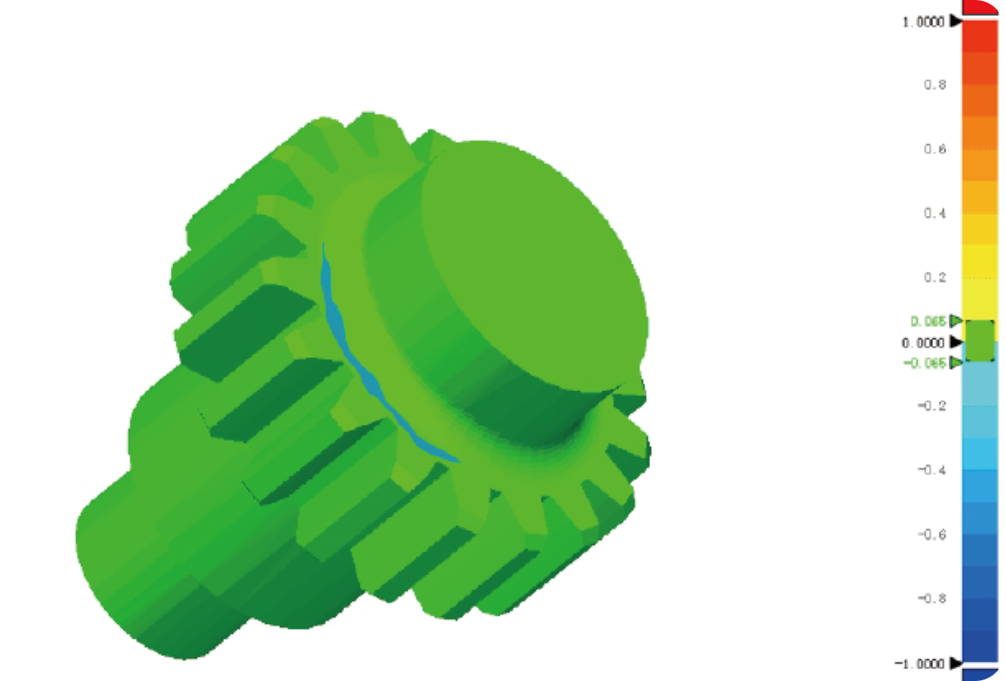

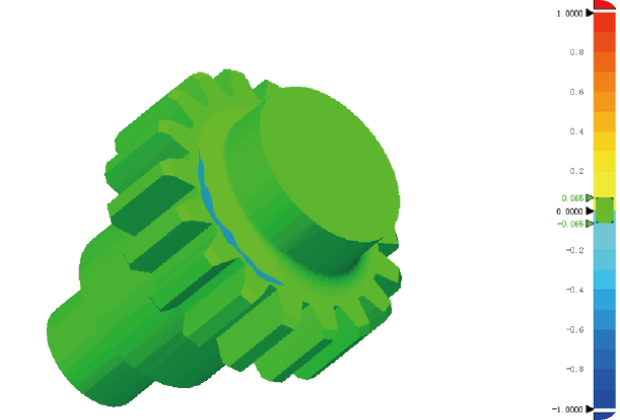

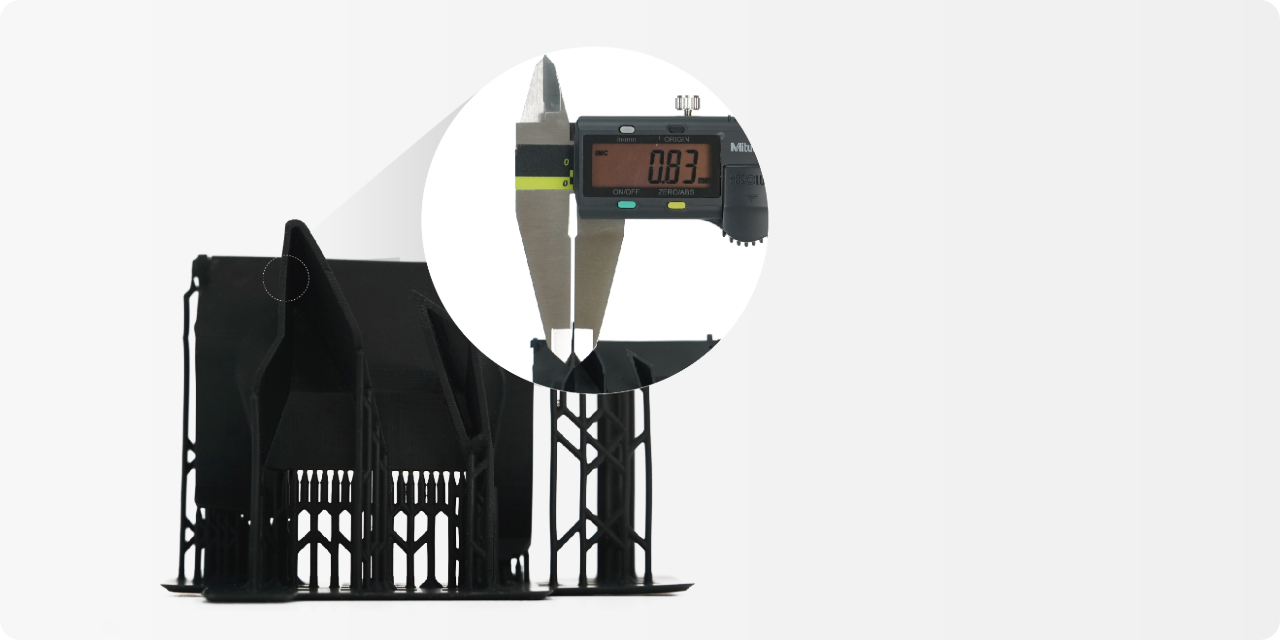

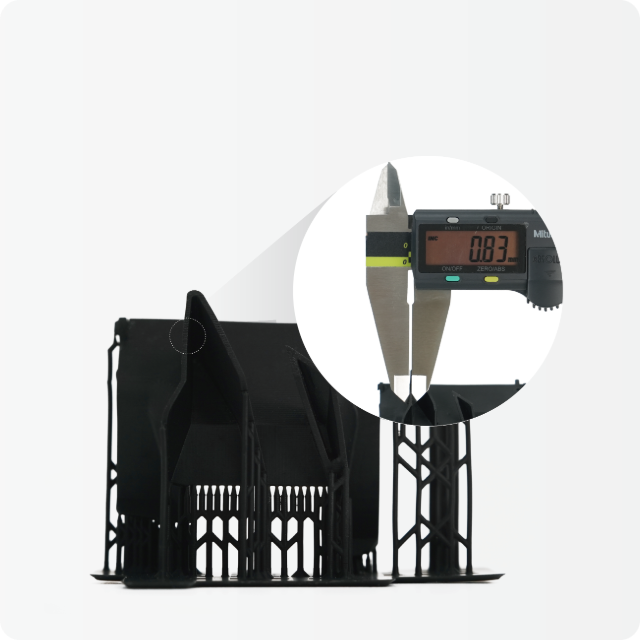

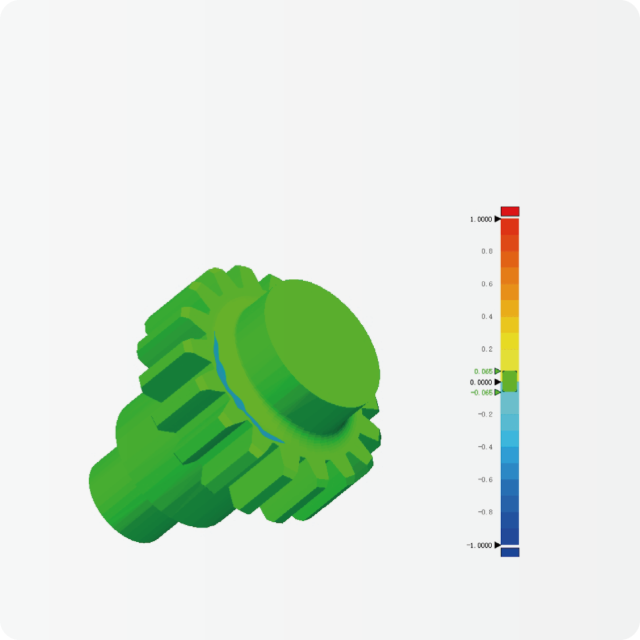

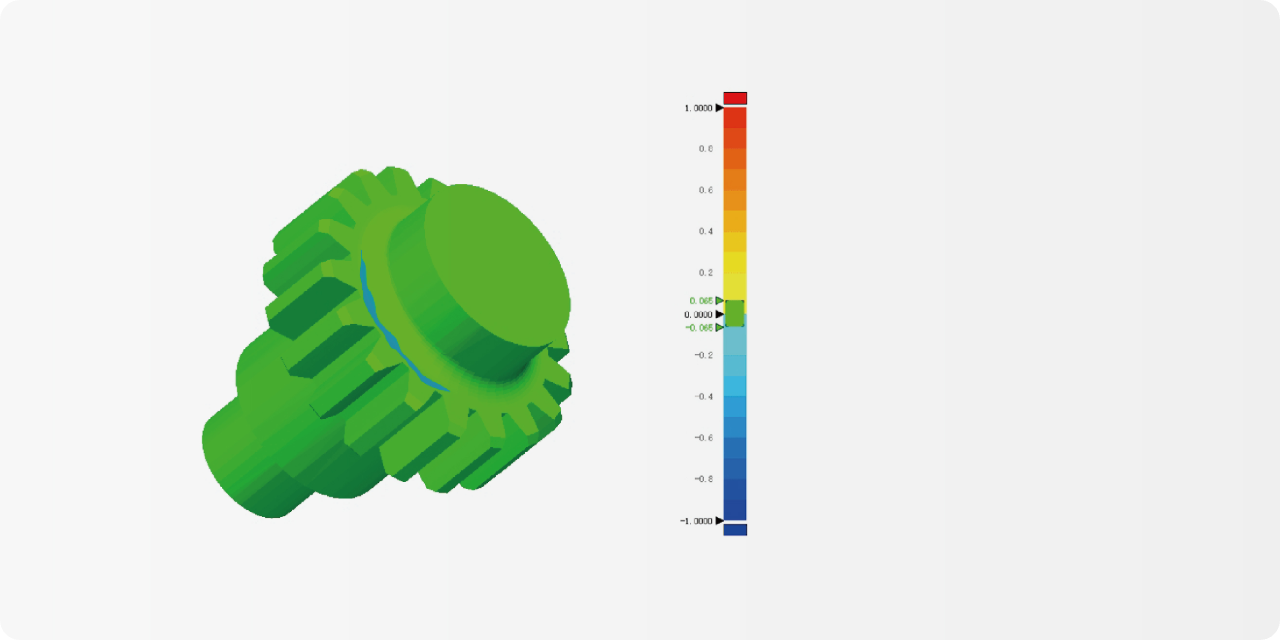

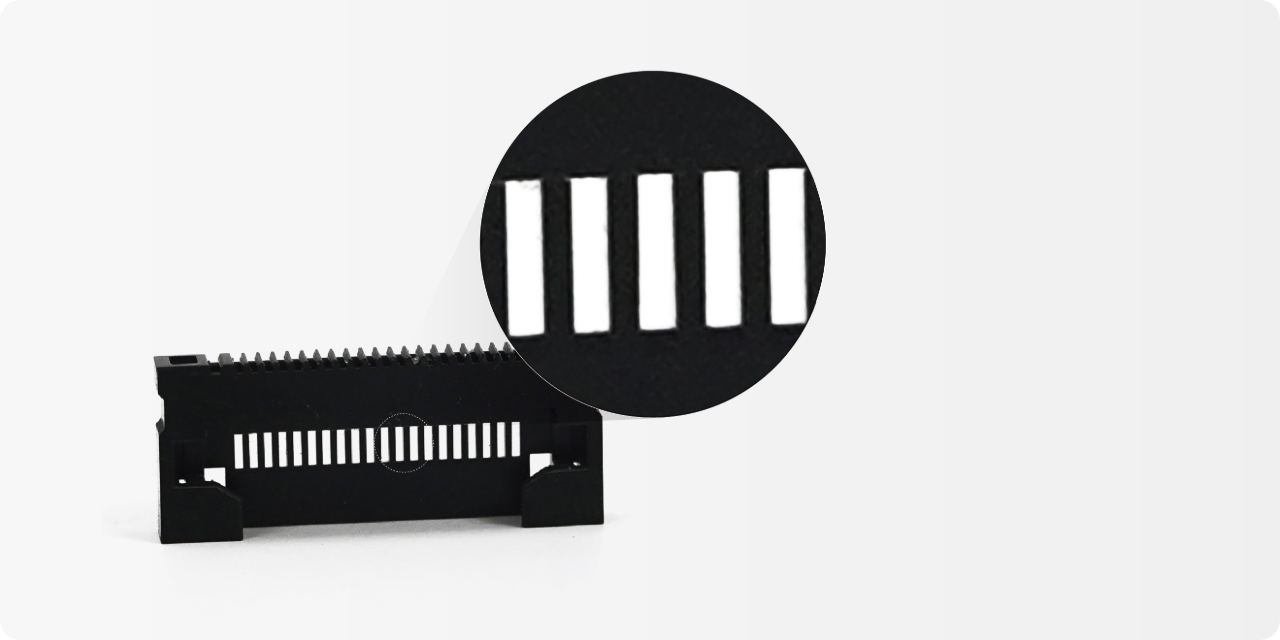

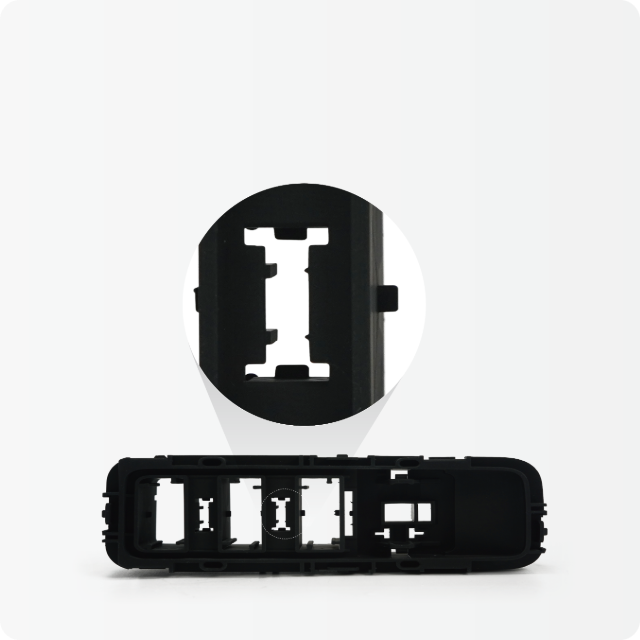

Dimensional accuracy up to ±65μm for flawless replication of complex geometries – meeting stringent industrial tolerance standards

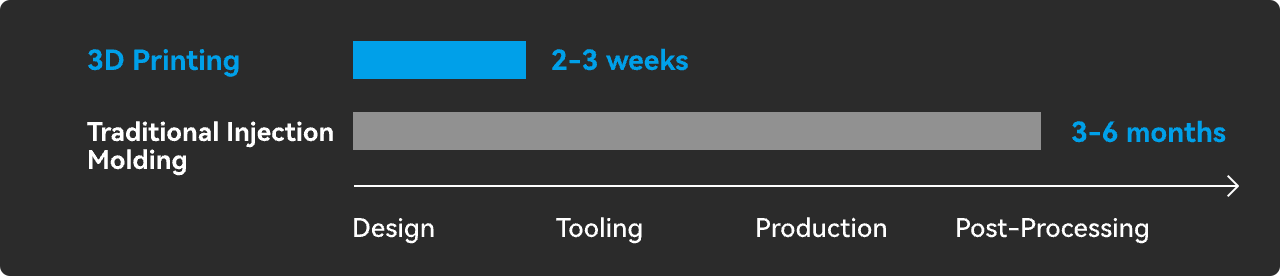

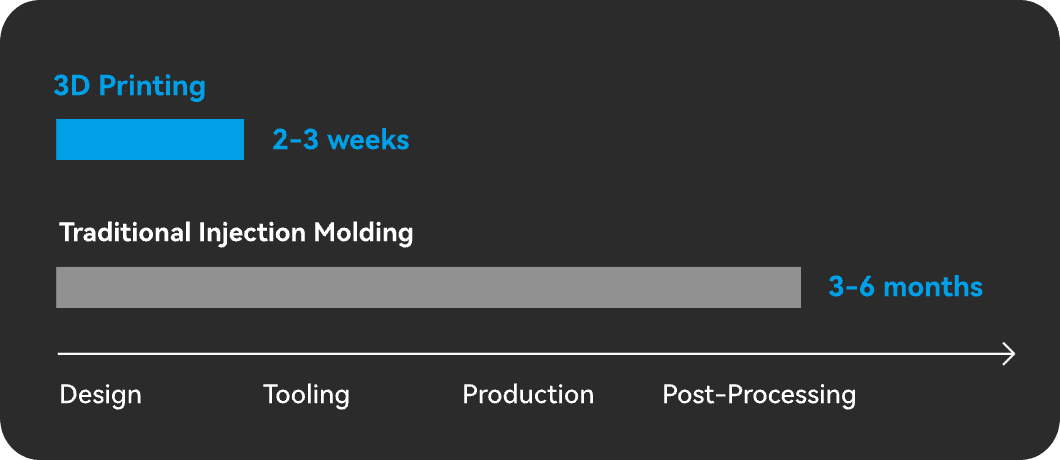

70% faster production cycles and zero tooling costs compared to traditional injection molding – unlocking low-cost small-batch flexible production
Drive the sports and health industry into a new era of digital smart manufacturing through high precision, lightweight design and customization. Our commitment to performance, precision fit, and efficient production empowers athletes and consumers to achieve enhanced sports experience.

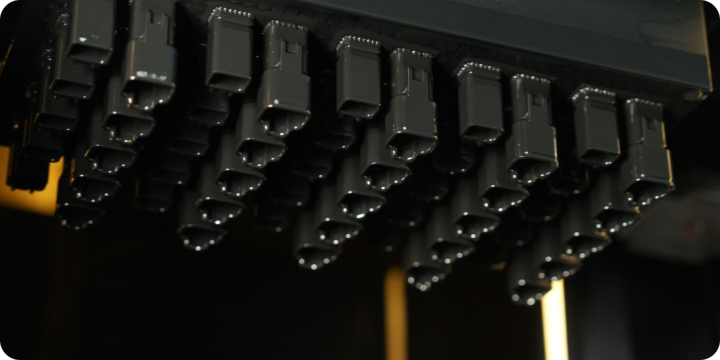

In the highly competitive and ever-evolving automotive market, we're breaking through traditional manufacturing limitations to enable customized components and lightweight designs. Our high-performance, efficient, and rapid-iteration manufacturing model provides strong momentum for vehicle performance optimization, product innovation, and quicker market response.

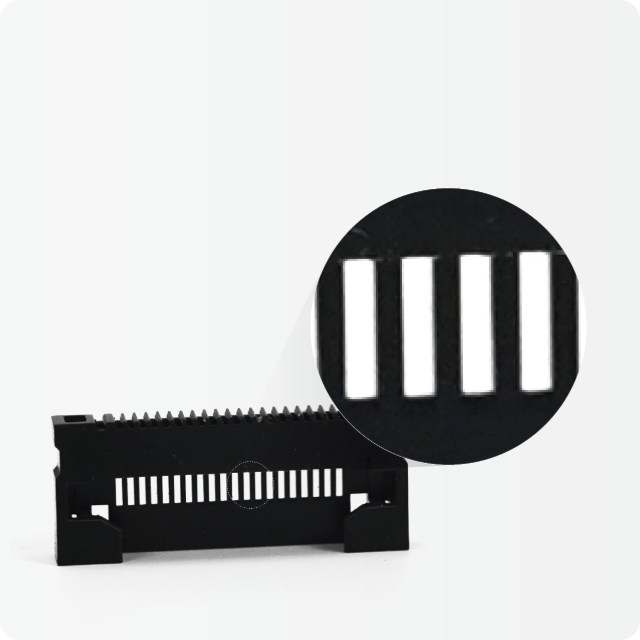

In the consumer electronics sector, products are not just tools but extensions of art. With its exceptional precision and material versatility, resin 3D printing enables the perfect realization of everything from complex casings to precision components. It infuses brands with boundless creativity and customization, creating unique products that blend technological sophistication with aesthetic quality.
| Equipment Name | R1 | R1 MAX |
| Equipment Dimensions | 955mm(W) x 725mm(D) x 1760mm(H) (including touchscreen) | 955mm(W) x 725mm(D) x 1760mm(H) (including touchscreen) |
| Weight | 297kg | 304kg |
| Print Technology | PReS | PReS |
| Build Volume | 203mm(W) x 114mm(D) x 300mm(H) | 307mm(W) x 162mm(D) x 300mm(H) |
| Layer Thickness | 0.01mm-0.20mm | 0.01mm-0.20mm |
| General Accuracy | ±65 μm +1μm/mm | ±65 μm +1μm/mm |
| UV Wavelength | 385nm | 385nm |
| Power Supply | 100-240VAC.50/60Hz | 100-240VAC.50/60Hz |
| Max Power Consumption | 1500W | 1500W |
